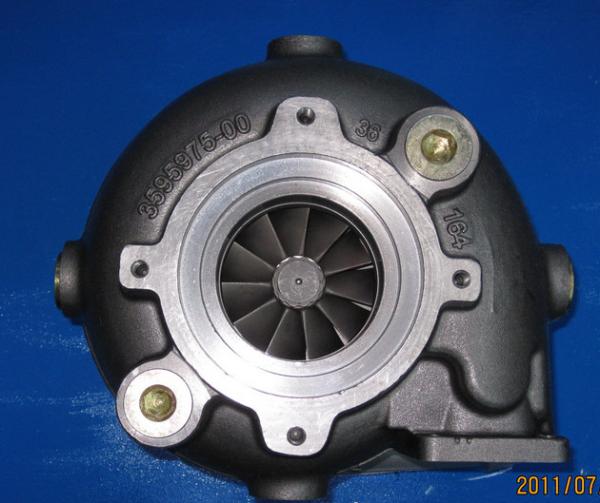

1995-11 Cummins Marine HX80M Turbo 3596961

Ask Lasest Price

Add to Cart

Product Details
Company Profile

1995-11 Cummins Marine HX80M Turbo 3596961

Product Description

Part Number	3596961
Previous Number	3536363, 3538512, 3538513, 3594149, 3594151, 3596961, 3596963, 3596966, 3767945
OE Number	2882022, 3804491, 3804492, 3804697, 3804830
Description	Marine
Manufacturer Part Number	4025301
Turbo Model	HX80M, HX80-3851Z/R36T3, HX80-3851Z/R36YA3
CHRA	4027408
Engine	K19, K38
Engine Manufacturer	Cummins
Manufacturer Part Number	3537686, 3537687, 3594150, 3594152, 3596962, 3596963, 3596964, 3769997, 3769998
Displacement	38.0L, 3800 ccm
Fuel	Diesel
KW	400 HP
Angle α (compressor housing)	19/199º
Angle β (turbine housing)	22.5/360º
Bearing Housing	3595036 (359503600)
Turbine Wheel	3521033 (Ind. 129.0 mm, Exd. 95.4 mm, 11 Blades)(1152105435)
Rotor Assembly	3575208
Comp. Wheel	3533703 (3535772, 3593182)(Ind. 90.96 mm, Exd. 141.05 mm, Trm 41, 8+8 Blades)
Back plate (Diffuser)	3538455
Heat shield Number	3536588 (1153080340)
Repair Kit	3545647 (3575236, 4027966)(1152105750, 1152105756)
Turbine Housing (Water Cooled)	3595978
Compressor Cover	3527369
Gasket (turbine inlet)	311698
Gasket Kit	4032454
Plug (Threaded)	3201583
Replaced by	Superseded 3769995
Manufacturer	CHINA

Applications

1995-09 Cummins Marine with K38 Engine
